$17,915.36

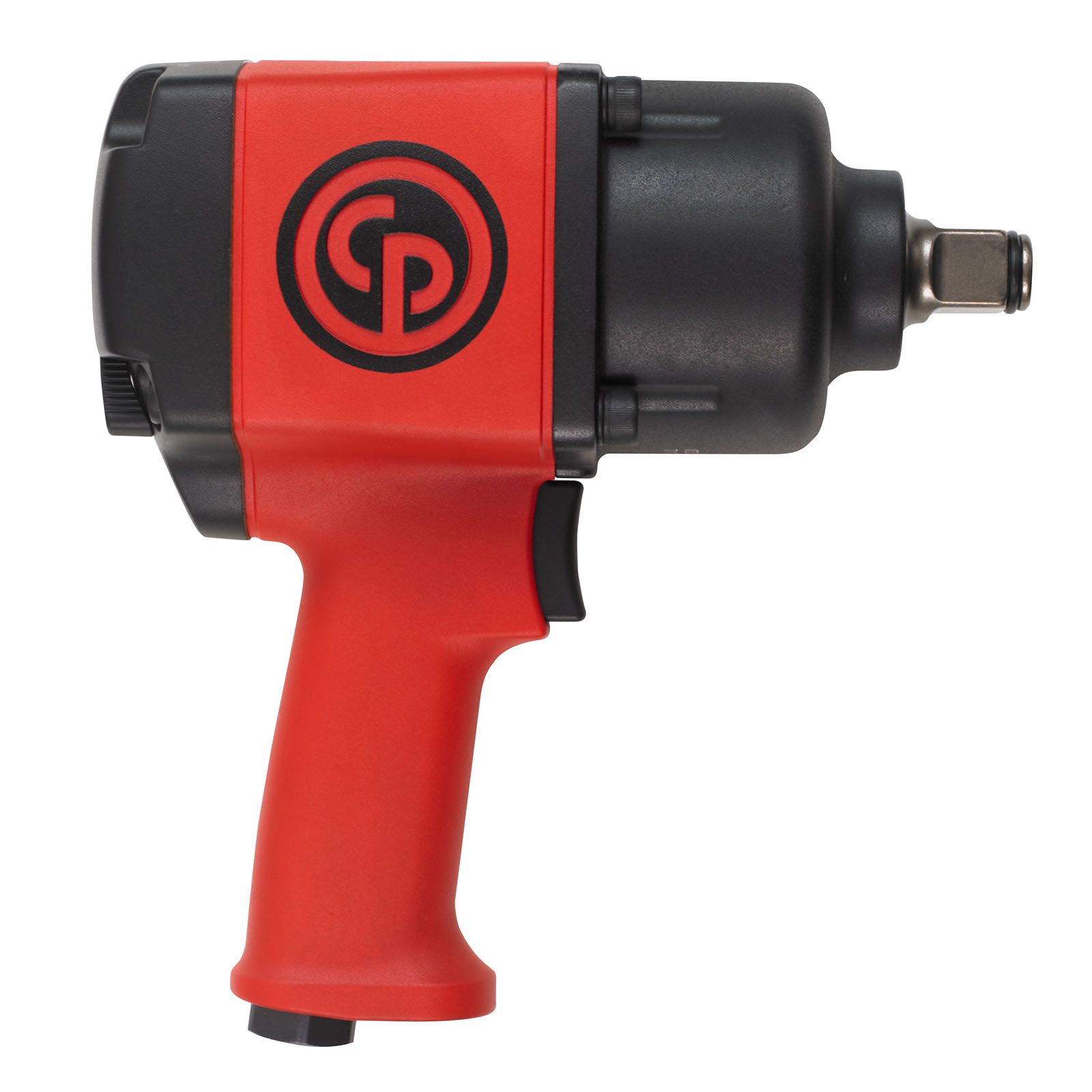

Llave de impacto de 3/4″
Embrague de martillo doble
Alta potencia: 1627 Nm (1200 ft.lbs)
Tamaño compacto con solo 5,25 kg (11,57 lbs)
Regulador de potencia combinado con marcha directa e inversa
Beneficios:
Comodidad para el operario debido a los niveles de ruido reducidos y el tamaño compacto
Embrague para una mayor potencia y durabilidad
Ideal para trabajos con muelles, tuercas de piñón, desmontaje de pastillas de tractores, trabajos con ruedas de camiones y desguace de grandes motores
| Metric | Imperial | |
|---|---|---|
| Model | CP7763 | |
| Part number | 8941077630 | |
| Actual air consumption | 14.2 l/s | 30 cfm |
| Air inlet thread size | 3/8 “ | |
| Average air consumption | 3.5 l/s | 7.5 cfm |
| Blows per minute | 900 | |
| Clutch type | Twin hammer | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 6300 rpm | |
| Handle type | Pistol | |
| Length | 229 mm | 8.8 “ |
| Maximum Torque (reverse) | 1630 Nm | 1200 ft.lbs |
| Min. hose size | 13 mm | 1/2 “ |
| Net weight | 5.25 kg | 11.57 lb |
| Power/weight ratio | 310.5 Nm/kg | 103.7 ft.lb/lb |
| Side to center | 45 mm | 1.8 “ |
| Socket retainer | Friction ring | |
| Sound Power | 107 db(A) | |
| Sound pressure | 96 db(A) | |
| Square drive | 3/4 “ | |
| VST2 | 48 | |
| Vibration | 10.4 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 4.2 m/s² | |
| Working Torque Range (fwd) | 136 – 1288 Nm | 100 – 950 ft.lbs |
